STREAMFORMER: Press Brake Programming

Description

Course Length:  3 days

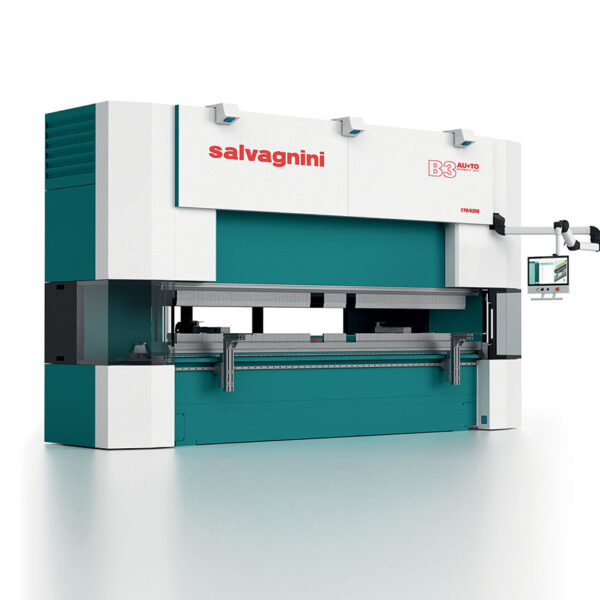

Learn the fundamentals of the Salvagnini B3 Technology.  This course will focus on the techniques for off line programming using the available CAM software.

It will teach you how to create a complete program for your Press Brake.  It will detail the process of starting with any CAD design through the transfer of the program to the machine.

An emphasis is made on the 3D environment for visualizing the part design which is carried through to the machine console in order to aid the operator.

The lessons are done using your specific machine configuration alternating theory with programming exercises. The exercises are developed gradually based on the required designs, purchased punch and die setups, and other options included in the sold system. A description and explanation of the system, size components like reference system, and angle measurement options will assist in learning the machine capabilities.

• Classification and description of bend types
• Classification and description of tool types: punches, dies, ends, hemming tools
• Classification and description of tool adapters
• Tools database press setup functions
• CAM processing to optimize bend sequence, and back gauge positions
• Learning about various types of tool station set ups
• Automatic, semi-automatic, and manual part process methods
• Batch processing if applicable to your system

Learn in our Campus with a dedicated terminal per user, and utilize the software to aid in making part and nest programs that are ready to test on your system. Learn on the software applications aligned with the options purchased with your system.

• Office Console and Program Editor
• PartS: Application overview and usage description. (If applicable)
